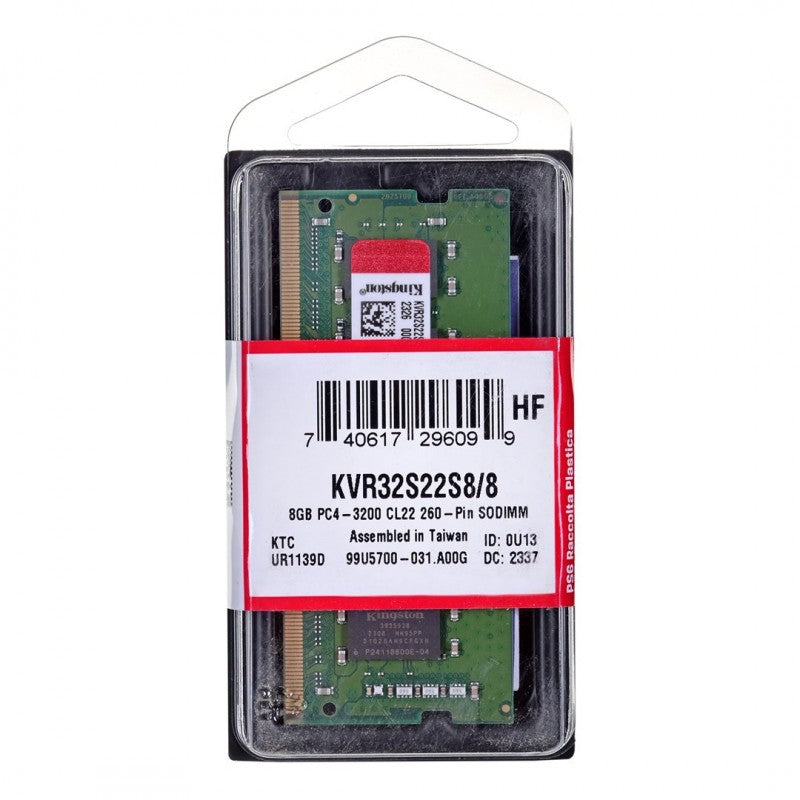

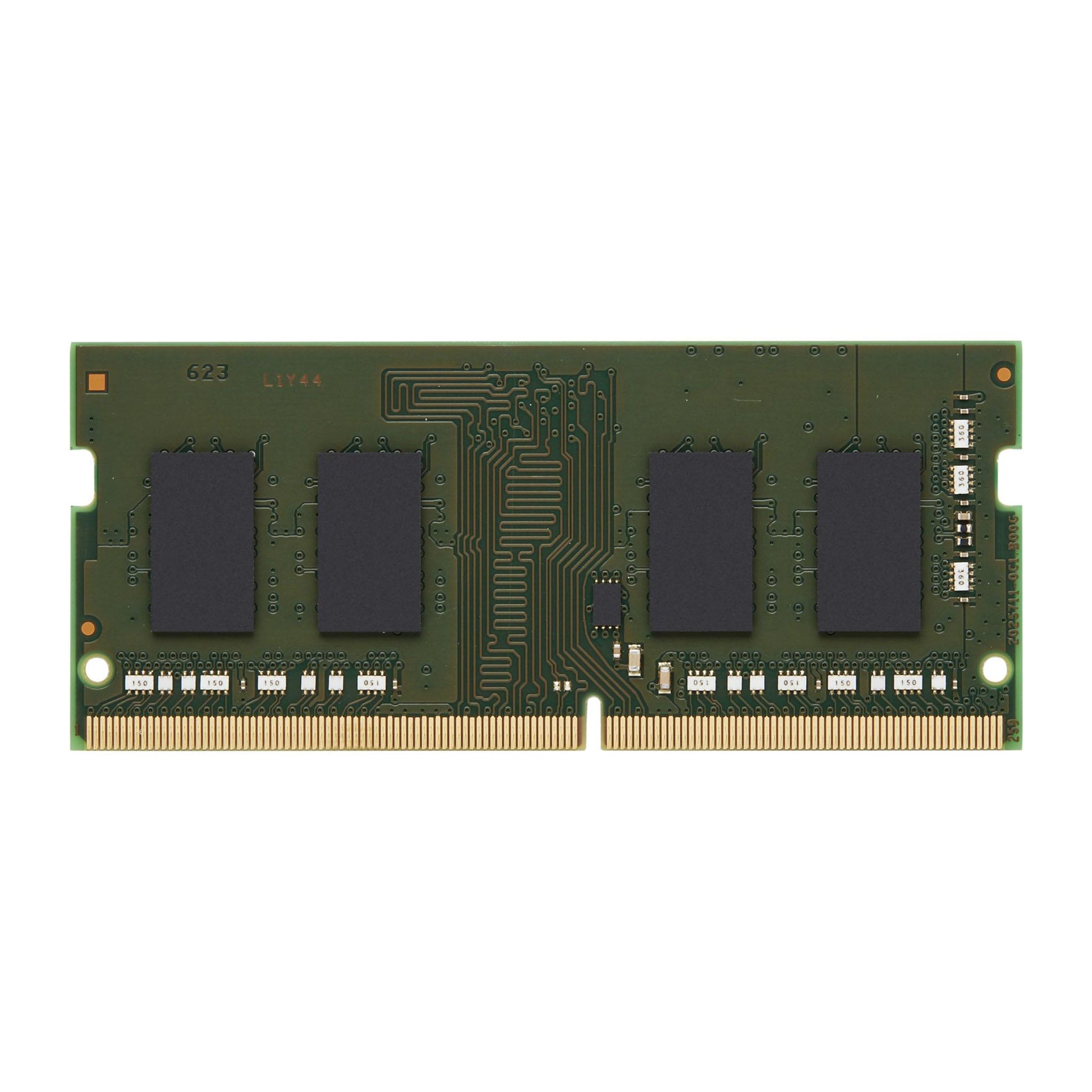

Kingston ValueRAM RAM provides stable performance and extended compatibility for your laptop. You benefit from a frequency of 3200MHz and CL22 latency,
ideal for running daily applications, smooth multitasking, and improving system response times. The single rank, non-ECC module,
is built according to JEDEC standards and operates at a voltage of 1.2V for reduced energy consumption and increased efficiency.
The design with 260 pins and gold-plated contacts ensures a secure connection and long-term durability,
making it a suitable choice for a quick and safe upgrade.
Features:
- Model: KVR32S22S8/8
- Capacity: 8GB
- Memory type: DDR4 SDRAM
- Frequency: 3200MHz
- Latency: CL22 (22-22-22)
- Format: SO-DIMM 260 pins
- Configuration: 1Rx8, single rank
- Non-ECC
- Supply voltage: 1.2V (VDD, VDDQ), VPP 2.5V
- tRCmin: 45.75ns
- tRFCmin: 350ns
- tRASmin: 32ns
- 16 internal banks (4 groups x 4 banks)
- Supports ODT, DBI, and LPASR
- Integrated SPD EEPROM (I2C)
- Operating temperature: 0 degrees C to +85 degrees C
- Storage temperature: -55 degrees C to +100 degrees C
- RoHS compliant and halogen-free
- PCB height: 30 mm
